1.0. Introduction

PLCs are the heart of any manufacturing facility and have been so for some time now. They are proprietary hardware sold by Rockwell, Siemens, and others to scores of enterprises worldwide. All manufacturing companies are tied to these proprietary technology vendors which makes it expensive not only to program them but also to integrate them with PLCs from a different vendor and with supervisory systems.

The IT world has marched on into Cloud Computing, Microservices, Containerization, Open Source, etc. All these advancements have brought more choice, high inter-operability to utilize commodity hardware as well as scalability and fault-tolerance. None of these have made a dent in the PLC world. But times are changing and now you can develop efficient PLC code using open standards that can be containerized with the ability to run on any vendor’s hardware.

2.0. Module Type Package (MTP)

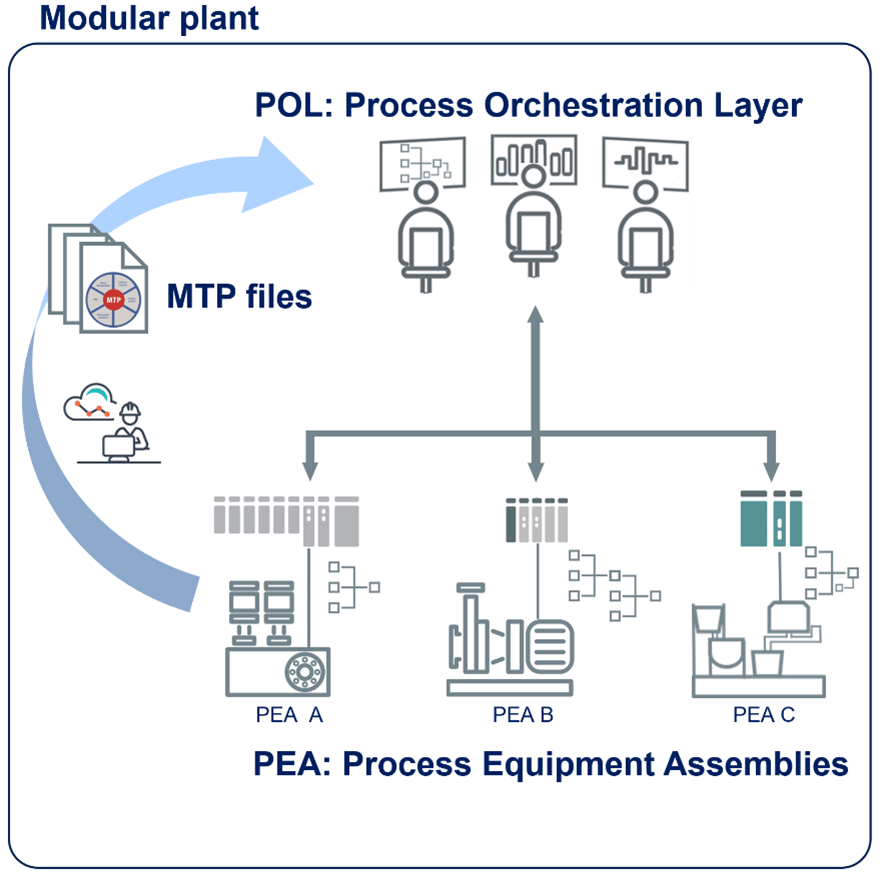

The Module Type Package (MTP) is a crucial concept in modern industrial automation, particularly concerning modular plants and their integration with higher-level control systems. MTP is specifically designed to facilitate the rapid and reliable integration of modular equipment, such as Programmable Logic Controllers (PLCs), into larger automation frameworks. Below is a detailed overview of MTP, its applications, and its integration with the Margo Standard for PLC Containerization.

The Module Type Package (MTP) is instrumental in contemporary industrial automation by standardizing the integration of modular plant components. Its collaboration with the Margo Standard enhances interoperability and supports containerization strategies for PLC applications. Together, these frameworks enable manufacturers to achieve increased flexibility, scalability, and efficiency in their production processes, ultimately driving innovation across various industries.

MTP is a vendor-independent standard that provides a comprehensive description of the properties and interfaces of modular plant components, known as Process Equipment Assemblies (PEAs). It serves as a communication interface between higher-level control systems (such as Distributed Control Systems or DCS) and modular plants, ensuring seamless integration and orchestration of diverse modules.

2.1. Key Features of MTP

2.1.1. Standardized Interface:

The MTP framework establishes a standardized interface for modules, allowing for seamless communication between them, regardless of the manufacturer. This standardization not only reduces engineering efforts but also simplifies the integration process.

2.1.2. Plug-and-Produce Capability:

The MTP framework enables the swift integration of new modules into existing systems, eliminating the need for extensive reconfiguration. When a new module is introduced, the system automatically detects it and incorporates it effortlessly into the operational framework.

2.1.3. Comprehensive Module Description:

Each MTP file contains detailed information about the module's functionality. This includes data objects, visualization elements, operational parameters, and alarm management.

2.2. Advantages of MTP

 2.2.1. Reduced Engineering Efforts:

The Modular Technology Platform (MTP) simplifies the module integration process, leading to significant reductions in both time and costs associated with establishing modular plants.

2.2.2. Flexibility and Scalability:

MTP provides a versatile solution for manufacturers, enabling them to easily add or remove modules based on production needs. This adaptability allows businesses to respond quickly to changing market demands.

2.2.3. Improved Reliability:

The standardization process ensures that modules from different manufacturers can work together seamlessly, greatly enhancing the overall reliability of the system.

3.0. Specific Example of an MTP in Action: The Purification Module

The Purification Module is a vital component in the production of monoclonal antibodies, playing a crucial role in ensuring product quality and compliance with regulatory standards. This section outlines the implementation steps for the Purification Module, detailing its functionality, specifications, testing scenarios, deployment processes, and ongoing monitoring and optimization.

3.1. Implementation Steps for the Purification Module

3.1.1. Define Functionality:

The first step in implementing the Purification Module is to clearly define its core functionalities, ensuring alignment with the requirements of the biopharmaceutical production process.

• Process Management: The module must effectively manage purification operations based on key input parameters, including:

  • Flow Rate: The volume of liquid passing through the purification system over time, crucial for maintaining optimal processing conditions.

  • Pressure: Monitoring pressure levels is essential to prevent system failures and ensure efficient operation.

  • Temperature: Maintaining specific temperature ranges is critical for preserving product integrity during purification.

• Quality Monitoring: Integrate sensors to continuously monitor product quality throughout the purification process:

  • UV Absorbance Sensors: These sensors measure the absorbance of UV light at specific wavelengths to evaluate protein concentration and purity.

  • pH Sensors: Monitoring pH levels ensures that conditions remain within specified limits for effective purification.

This comprehensive functionality allows for real-time adjustments, ensuring high-quality output.

3.1.2. Develop MTP Specifications:

After defining the functionality, the next step is to create detailed specifications for the Purification Module.

• Inputs:

  • Flow Rate Sensor Data: Collect data from flow rate sensors installed in chromatography columns to regulate flow during purification.

  • Temperature Readings: Gather temperature data from heat exchangers that maintain the required thermal conditions.

• Outputs:

  • Control Signals: Generate control signals for valves and pumps based on sensor inputs to automate flow adjustments and maintain desired operating conditions.

  • Alerts for Out-of-Spec Conditions: Implement alert systems that notify operators of any deviations from set parameters (e.g., high pressure or low flow rates) to facilitate immediate corrective actions.

The MTP specifications define how these inputs and outputs interact within the broader automation system, ensuring seamless integration with existing infrastructure.

3.1.3. Testing Scenarios:

Before full deployment, it is critical to validate the Purification Module through rigorous testing scenarios:

• Simulated Operational Conditions: Conduct simulations that replicate real-world conditions under various scenarios:

  • Test with different feedstock qualities to evaluate how well the module adapts to changes in input material.

  • Assess performance under varying flow rates and pressures to ensure reliability across a range of operational settings.

• Performance Metrics Evaluation: Monitor key performance metrics such as yield rates, purity levels, and processing times during testing to establish benchmarks for operational efficiency.

This testing phase ensures that the module operates effectively before it is integrated into live production environments.

3.1.4. Deployment Steps:

Once testing is complete, the Purification Module can be deployed into the production environment:

• Integration into Orchestration Platform: Connect the Purification Module to an orchestration platform that supports MTP standards, allowing it to communicate seamlessly with other modules and systems.

4.0. Margo Standard

The Margo Standard is a collaborative initiative focused on enhancing interoperability within industrial automation, particularly at the edge of systems. Supported by a consortium of leading companies in the field—including ABB, Rockwell Automation, Schneider Electric, Microsoft, and others—Margo advocates for a unified approach to developing essential standards. This initiative actively invites contributions from industry peers, fostering a community-driven effort to establish effective interoperability standards that can adapt to the rapidly changing technological landscape.

This standard represents a significant advancement in achieving interoperability within industrial automation ecosystems. By emphasizing edge computing and providing a robust framework for collaboration across various technologies, Margo enables organizations to optimize their operations and accelerate their digital transformation. Its comprehensive approach—incorporating open standards, practical implementations, and compliance testing—positions Margo as a crucial resource for industries striving to fully leverage the potential of modern automation solutions.

4.1. Key Features of Margo Standard

4.1.1. Open Standard Framework:

Margo introduces an open standard designed to streamline and standardize industrial automation processes. This framework enhances interoperability among diverse applications and devices.

4.1.2. Reference Implementation:

The initiative provides a practical reference implementation to guide organizations in adopting the standard. This implementation clarifies how to effectively integrate various components.

4.1.3. Compliance Testing Toolkit:

A comprehensive compliance testing toolkit ensures that applications and devices meet the interoperability requirements set by the Margo Standard. This toolkit is vital in fostering confidence in the standard's commitments.

4.1.4. Focus on Edge Computing:

Margo underscores the importance of edge computing, where data processing occurs close to its source. This approach reduces latency and enhances responsiveness, making it essential for real-time applications in manufacturing and other sectors.

4.1.5. Support for Multi-Vendor Environments:

Margo's dedication to promoting interoperability among products from different vendors aims to simplify the complexities often faced when integrating multiple systems. This capability is crucial for organizations that rely on a diverse array of technologies from various suppliers.

4.2. Benefits of Margo Standard

4.2.1. Accelerated Digital Transformation:

Margo empowers organizations to expedite their digital transformation efforts by removing barriers that often impede innovation in complex environments.

4.2.2. Cost Reduction:

By optimizing integration processes and reducing reliance on specialized resources, businesses can lower operational costs while simultaneously enhancing productivity.

4.2.3. Enhanced Innovation:

The open nature of the standard encourages experimentation with emerging technologies, fostering an environment that nurtures innovation.

5.0. Containerization

Programmable Logic Controllers (PLCs) have long been pivotal in industrial automation, serving as the "brains" behind numerous manufacturing processes. With the advent of Industry 4.0, there is an increasing trend to integrate containerization technologies with PLCs, significantly enhancing their capabilities and flexibility.

Containerization is a technique that packages software applications along with their dependencies into isolated units known as containers. This method ensures that applications operate consistently across diverse environments, whether on local machines or cloud infrastructures. In contrast to traditional virtual machines, containers are lightweight, providing faster startup times and streamlined deployment.

By allowing applications to run in isolated environments, containerization guarantees consistent performance across various platforms. For PLCs, this means they can utilize containerized applications to improve their functionality without sacrificing reliability or security. The synergy of containerization and PLCs results in smarter, more adaptable automation systems that can meet the demands of modern manufacturing. Achieving PLC containerization can be accomplished by integrating the Module Type Package (MTP) with the Margo Standard.

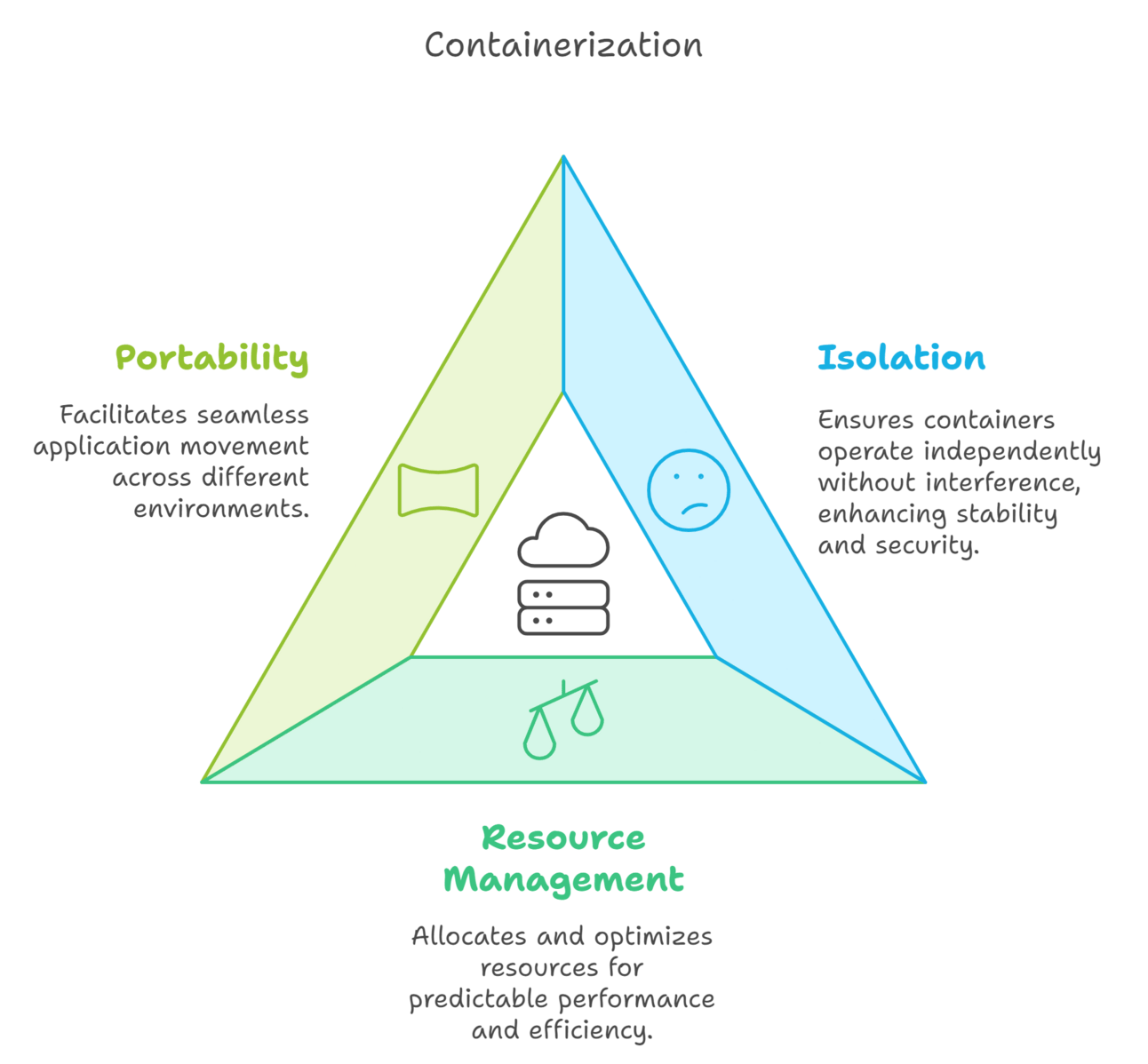

5.1. Key Features of Containerization

Containerization has revolutionized the way applications are developed, deployed, and managed.

5.1.1. Isolation:

Isolation involves keeping containers separate from one another and from the host system. This practice ensures that applications running in different containers do not interfere with each other.

• Process Isolation: Each container operates as an isolated process, complete with its own file system, libraries, and resources. Consequently, changes or failures in one container do not impact others, providing a stable environment for applications to function independently.

• Resource Isolation: Containers are allocated dedicated CPU, memory, and storage resources, ensuring predictable performance. Control groups (cgroups) effectively manage these resources, preventing any single container from monopolizing system capabilities and affecting others.

• Security Isolation: Techniques such as namespace isolation keep process IDs, network interfaces, and file systems distinct. This approach reduces the risk of unauthorized access and limits the potential impact of vulnerabilities within a single container.

• Dependency Management: Containers enable developers to specify the exact versions of libraries and frameworks required for their applications. This guarantees consistent behavior across different environments, alleviating the "works on my machine" dilemma.

5.1.2. Resource Management:

Resource management refers to the ability to allocate specific resources to each container, optimizing performance and ensuring efficient use of system capabilities.

• Dynamic Allocation: Administrators can dynamically adjust resource allocations based on the needs of applications. This flexibility facilitates efficient scaling up or down in response to workload demands.

• Predictable Performance: By isolating resource usage through cgroups, containers can maintain consistent performance levels even under varying loads. This consistency is particularly vital in multi-tenant environments where multiple applications share the same physical resources.

• Granular Control: Resource management tools provide administrators with detailed insights into resource consumption for each container. This capability enhances decision-making regarding capacity planning and optimization efforts.

5.1.3. Portability:

Portability refers to the ease with which applications packaged in containers can be moved and executed across different environments without requiring modifications.

• Cross-Platform Compatibility: Containers encapsulate all dependencies necessary for an application to run, allowing them to be deployed on any system that supports the container runtime (e.g., Docker). This eliminates the compatibility issues typically faced when transitioning applications between environments.

• Simplified Deployment: The uniformity of containers enables developers to build once and deploy anywhere—whether on-premises servers, public clouds, or hybrid environments—significantly streamlining the deployment process.

• Version Control: Container images can be easily versioned, allowing teams to revert to previous versions if necessary. This capability enhances development workflows by providing a reliable method for managing application updates across various environments.

5.2. Role of MTP

The Module Type Package (MTP) standard is pivotal in the realm of PLC containerization, particularly in enhancing interoperability and simplifying the integration of diverse automation systems. Below, we delve into how MTP contributes to PLC containerization, drawing insights from various sources.

5.2.1. Simplifying Integration

MTP acts as a vendor-neutral description language that streamlines the integration of Distributed Control Systems (DCS) and Programmable Logic Controllers (PLCs). This is especially crucial in environments where multiple systems from different manufacturers operate simultaneously:

• Streamlined Configuration: MTP enables users to configure their PLCs effortlessly with the necessary "hooks" for interaction with a DCS. This significantly reduces the complexity typically associated with integrating disparate systems, which often required manual data mapping and custom coding.

• Modular Approach: By modularizing process automation, MTP allows for the seamless connection of various subsystems, such as filtration skids and chemical injectors, into a unified operational framework. This modularity is vital for modern manufacturing processes that demand flexibility and rapid adaptation to evolving requirements.

5.2.2. Enhancing Interoperability

MTP significantly boosts interoperability among different automation components, which is essential for effective PLC containerization:

• Unified Data Model: MTP provides a standardized data model that encapsulates all relevant information about a module, including its functions, alarms, and operational parameters. This standardized approach ensures effective communication between different systems without compatibility issues.

• Cross-Platform Compatibility: As an open standard, MTP is designed to be vendor-agnostic. This allows it to be implemented across various platforms and devices, enabling organizations to

6.0. Conclusion

The integration of the Module Type Package (MTP) and the Margo Standard signifies a remarkable advancement in the realm of industrial automation, particularly for modular plants and Programmable Logic Controllers (PLCs). Together, these frameworks enhance flexibility, scalability, and efficiency in manufacturing processes, which are vital for adapting to the rapidly evolving demands of various industries.

MTP serves as a vendor-independent standard that simplifies the integration of modular components, facilitating seamless communication between different modules. This standardization not only reduces engineering efforts and costs but also enables swift adaptations to production lines. The plug-and-produce capability of MTP allows for the integration of new modules without extensive reconfiguration, fostering an agile manufacturing environment that can quickly respond to market needs.

Complementing MTP, the Margo Standard enhances interoperability across automation systems. Its emphasis on edge computing enables real-time data processing, which is essential for applications such as predictive maintenance. By providing an open standard framework and compliance testing tools, Margo assists organizations in optimizing their operations and accelerating digital transformation.

Furthermore, the incorporation of containerization technologies with PLCs amplifies these benefits. Containerization allows applications to operate in isolated environments, improving resource utilization and scalability while ensuring consistent performance across platforms. This synergy between MTP and containerization empowers manufacturers to harness modern automation solutions effectively.

In conclusion, the collaboration between MTP and the Margo Standard establishes a robust framework that addresses the complexities of contemporary industrial automation. By standardizing interfaces and enhancing interoperability, these initiatives enable manufacturers to achieve greater operational efficiency and adaptability. As industries continue to shift towards more modular production systems, embracing these standards will be crucial for driving innovation and maintaining a competitive edge in an increasingly dynamic marketplace.
